Class used to represent a metric object (with a name, unit, tags, a value and a timestamp) More...

#include <Metric.h>

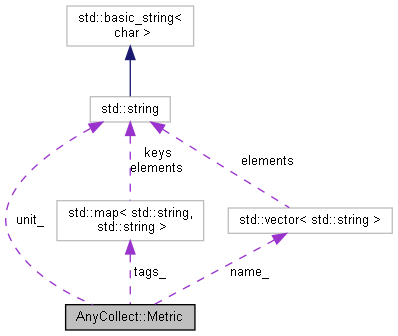

Collaboration diagram for AnyCollect::Metric:

Public Member Functions
	Metric ()=delete
	Deleted default constructor. More...

	Metric (const std::vector< std::string > &name, const std::map< std::string, std::string > &tags, const std::string &unit="") noexcept
	Construct a new Metric object. More...

	Metric (std::vector< std::string > &&name, std::map< std::string, std::string > &&tags, std::string &&unit="") noexcept
	Construct a new Metric object. More...

	Metric (const Metric &other) noexcept
	Copy constructor. More...

	Metric (Metric &&other) noexcept
	Move constructor. More...

Metric &	operator= (Metric other) noexcept
	Assignment operator. More...

const std::vector< std::string > &	name () const noexcept
	Returns the name of the metric. More...

size_t	key () const noexcept
	Returns the key of the metric. More...

size_t	roundKey () const noexcept
	Returns the key of the collection iteration which created the metric. More...

double	value () const noexcept
	Returns the value of the metric. More...

std::chrono::system_clock::time_point	timestamp () const noexcept
	Returns the timestamp of the metric. More...

const std::string &	unit () const noexcept
	Returns the unit of the metric. More...

const std::map< std::string, std::string > &	tags () const noexcept
	Returns the tags of the metric. More...

void	setNewValue (double value, bool computeRate, double unitsPerSecondFactor=1.0) noexcept
	Sets a new value to the metric. More...

void	updateValue (double value, double unitsPerSecondFactor=1.0) noexcept
	Adds a new value to the current value. More...

void	setTimestamp (std::chrono::system_clock::time_point timestamp) noexcept
	Sets the timestamp of the metric. More...

void	setRoundKey (size_t roundKey) noexcept
	Sets the round key of the metric. More...

Static Public Member Functions
static size_t	generateKey (const std::vector< std::string > &name, const std::map< std::string, std::string > &tags)
	Compute the key of potential metric. More...

static size_t	generateKey (const Metric &metric)
	Compute the key of a metric. More...

Protected Attributes
size_t	key_
	Key of the metric (hash of its name, tag keys and tags values) More...

size_t	roundKey_
	Key of the collection iteration which created this metric. More...

std::vector< std::string >	name_
	Array of strings representing the name of the metric. More...

double	previousValue_
	Previous value of the metric. More...

double	value_
	Current value of the metric. More...

std::chrono::system_clock::time_point	timestamp_
	Timestamp of the metric. More...

std::string	unit_
	Unit of the metric. More...

std::map< std::string, std::string >	tags_
	Tags of the metric. More...

Static Protected Attributes
static std::hash< std::string >	hasher {}
	Object used to compute keys (string hashes) More...

Detailed Description

Class used to represent a metric object (with a name, unit, tags, a value and a timestamp)

Definition at line 33 of file Metric.h.

Constructor & Destructor Documentation

◆ Metric() [1/5]

AnyCollect::Metric::Metric ( )

delete

Deleted default constructor.

◆ Metric() [2/5]

AnyCollect::Metric::Metric	(	const std::vector< std::string > &	name,
		const std::map< std::string, std::string > &	tags,
		const std::string &	unit = `""`
	)

noexcept

Construct a new Metric object.

Parameters

name	name of the metric
tags	tags of the metric
unit	unit of the metric

Definition at line 29 of file Metric.cc.

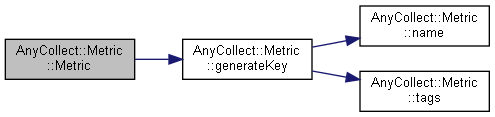

Here is the call graph for this function:

◆ Metric() [3/5]

AnyCollect::Metric::Metric	(	std::vector< std::string > &&	name,
		std::map< std::string, std::string > &&	tags,
		std::string &&	unit = `""`
	)

noexcept

Construct a new Metric object.

Parameters

name	name of the metric
tags	tags of the metric
unit	unit of the metric

Definition at line 39 of file Metric.cc.

Here is the call graph for this function:

◆ Metric() [4/5]

AnyCollect::Metric::Metric ( const Metric & other )

noexcept

Copy constructor.

Parameters

other metric to copy

Definition at line 49 of file Metric.cc.

◆ Metric() [5/5]

AnyCollect::Metric::Metric ( Metric && other )

noexcept

Move constructor.

Parameters

other metric to move

Definition at line 60 of file Metric.cc.

Member Function Documentation

◆ generateKey() [1/2]

size_t AnyCollect::Metric::generateKey	(	const std::vector< std::string > &	name,
		const std::map< std::string, std::string > &	tags
	)

static

Compute the key of potential metric.

Parameters

name	name of the metric
tags	tags of the metric

Returns: the potential metric's key

Definition at line 84 of file Metric.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ generateKey() [2/2]

static size_t AnyCollect::Metric::generateKey ( const Metric & metric )

static

Compute the key of a metric.

Parameters

metric the metric to compute the key of

Returns: the potential metric's key

◆ key()

size_t AnyCollect::Metric::key ( ) const

noexcept

Returns the key of the metric.

Definition at line 99 of file Metric.cc.

◆ name()

const std::vector< std::string > & AnyCollect::Metric::name ( ) const

noexcept

Returns the name of the metric.

Definition at line 95 of file Metric.cc.

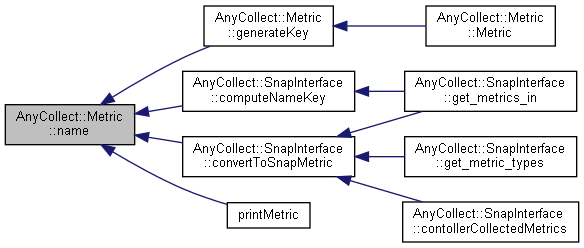

Here is the caller graph for this function:

◆ operator=()

Metric & AnyCollect::Metric::operator= ( Metric other )

noexcept

Assignment operator.

Parameters

other metric to copy

Definition at line 71 of file Metric.cc.

◆ roundKey()

size_t AnyCollect::Metric::roundKey ( ) const

noexcept

Returns the key of the collection iteration which created the metric.

Definition at line 103 of file Metric.cc.

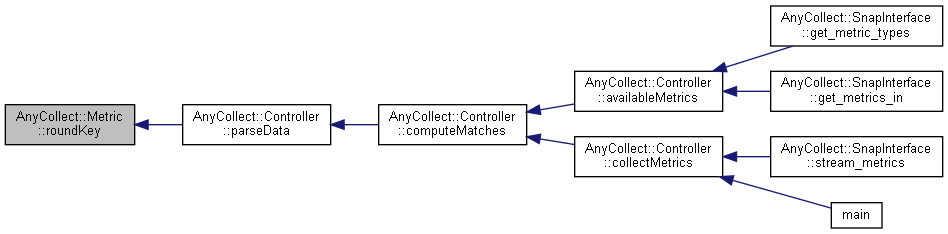

Here is the caller graph for this function:

◆ setNewValue()

void AnyCollect::Metric::setNewValue	(	double	value,
		bool	computeRate,
		double	unitsPerSecondFactor = `1.0`
	)

noexcept

Sets a new value to the metric.

Parameters

value	the new value
computeRate	whether the rate should be computed (as `previousValue_ - value`)
unitsPerSecondFactor	factor to convert the value into units per seconds

Definition at line 124 of file Metric.cc.

Here is the caller graph for this function:

◆ setRoundKey()

void AnyCollect::Metric::setRoundKey ( size_t roundKey )

noexcept

Sets the round key of the metric.

Definition at line 144 of file Metric.cc.

Here is the caller graph for this function:

◆ setTimestamp()

void AnyCollect::Metric::setTimestamp ( std::chrono::system_clock::time_point timestamp )

noexcept

Sets the timestamp of the metric.

Definition at line 140 of file Metric.cc.

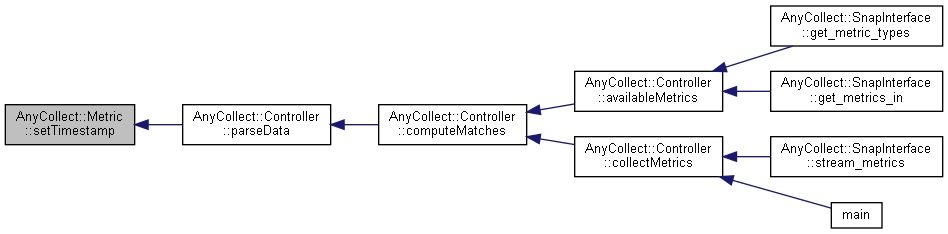

Here is the caller graph for this function:

◆ tags()

const std::map< std::string, std::string > & AnyCollect::Metric::tags ( ) const

noexcept

Returns the tags of the metric.

Definition at line 119 of file Metric.cc.

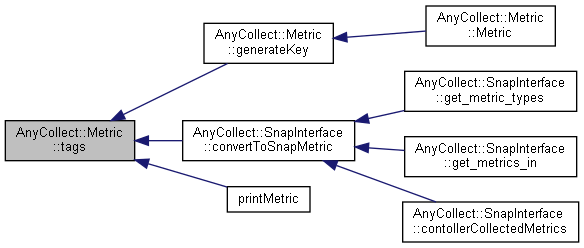

Here is the caller graph for this function:

◆ timestamp()

std::chrono::system_clock::time_point AnyCollect::Metric::timestamp ( ) const

noexcept

Returns the timestamp of the metric.

Definition at line 111 of file Metric.cc.

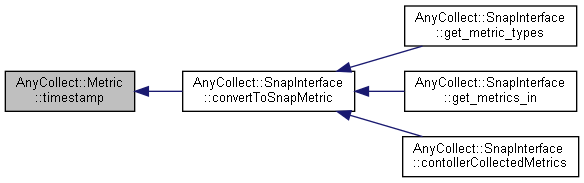

Here is the caller graph for this function:

◆ unit()

const std::string & AnyCollect::Metric::unit ( ) const

noexcept

Returns the unit of the metric.

Definition at line 115 of file Metric.cc.

Here is the caller graph for this function:

◆ updateValue()

void AnyCollect::Metric::updateValue	(	double	value,
		double	unitsPerSecondFactor = `1.0`
	)

noexcept

Adds a new value to the current value.

When a matcher computes the same metric during a single collection iteration (same round key), the different computed values are summed

Parameters

value	The value to add
unitsPerSecondFactor	factor to convert the value into units per seconds

Definition at line 133 of file Metric.cc.

Here is the caller graph for this function:

◆ value()

double AnyCollect::Metric::value ( ) const

noexcept

Returns the value of the metric.

Definition at line 107 of file Metric.cc.

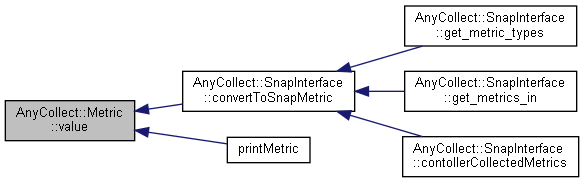

Here is the caller graph for this function:

Member Data Documentation

◆ hasher

std::hash< std::string > AnyCollect::Metric::hasher {}

staticprotected

Object used to compute keys (string hashes)

Definition at line 35 of file Metric.h.

◆ key_

size_t AnyCollect::Metric::key_

protected

Key of the metric (hash of its name, tag keys and tags values)

Definition at line 36 of file Metric.h.

◆ name_

std::vector<std::string> AnyCollect::Metric::name_

protected

Array of strings representing the name of the metric.

Definition at line 38 of file Metric.h.

◆ previousValue_

double AnyCollect::Metric::previousValue_

protected

Previous value of the metric.

Definition at line 39 of file Metric.h.

◆ roundKey_

size_t AnyCollect::Metric::roundKey_

protected

Key of the collection iteration which created this metric.

Definition at line 37 of file Metric.h.

◆ tags_

std::map<std::string, std::string> AnyCollect::Metric::tags_

protected

Tags of the metric.

Definition at line 43 of file Metric.h.

◆ timestamp_

std::chrono::system_clock::time_point AnyCollect::Metric::timestamp_

protected

Timestamp of the metric.

Definition at line 41 of file Metric.h.

◆ unit_

std::string AnyCollect::Metric::unit_

protected

Unit of the metric.

Definition at line 42 of file Metric.h.

◆ value_

double AnyCollect::Metric::value_

protected

Current value of the metric.

Definition at line 40 of file Metric.h.

The documentation for this class was generated from the following files:

AnyCollect/Metric.h
AnyCollect/Metric.cc
