MetroCollect::Statistics Class Reference

Class holding various statistics-related types and variables. More...

#include <Statistics.h>

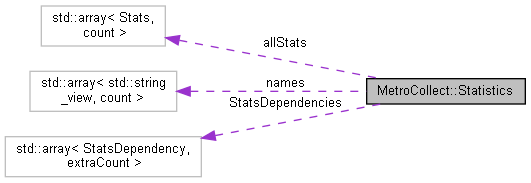

Collaboration diagram for MetroCollect::Statistics:

Public Types
enum	Stats : uint64_t {   StatsMin = 1 << StatsIndexMin, StatsMax = 1 << StatsIndexMax, StatsAverage = 1 << StatsIndexAverage, StatsStdDev = 1 << StatsIndexStdDev,   StatsNone = 0, StatsAll = StatsMin | StatsMax | StatsAverage | StatsStdDev }
	Bitwise type te select statistics. More...

Static Public Member Functions
static Stats	statsFromName (const std::string_view &statName)
	Convert a stat name to a stat value. More...
static Stats	statsRequiredForStat (Stats stat)
	Returns the stats which are required to compute this stat. More...

Static Public Attributes
static constexpr size_t	count = 4
	Number of available statistics. More...
static constexpr std::array< std::string_view, count >	names = {"min"sv, "max"sv, "average"sv, "stdDev"sv}
	Names of available statistics. More...
static constexpr std::string_view	nameStatsAll = "*"sv
static constexpr std::array< Stats, count >	allStats = {StatsMin, StatsMax, StatsAverage, StatsStdDev}
	Array of all available statistics. More...

Protected Types
enum	StatsIndex : uint8_t {   StatsIndexMin = 0, StatsIndexMax = 1, StatsIndexAverage = 2, StatsIndexStdDev = 3,   StatsIndexIntermediateSum = 4, StatsIndexIntermediateSumSquared = 5 }
	Associates a unique index to each statistic. More...
enum	StatsDependency : uint64_t {   StatsDependencyMin = StatsMin, StatsDependencyMax = StatsMax, StatsDependencyStdDev = StatsStdDev, StatsDependencyAverage = StatsAverage | StatsDependencyStdDev,   StatsDependencySum = StatsDependencyAverage, StatsDependencySumSquared = StatsDependencyStdDev }
	Dependency tree of each statistic. More...

Static Protected Attributes
static constexpr size_t	extraCount = count + 2
	Number of statistics and intermediate values. More...
static constexpr std::array< StatsDependency, extraCount >	StatsDependencies = {StatsDependencyMin, StatsDependencyMax, StatsDependencyAverage, StatsDependencyStdDev, StatsDependencySum, StatsDependencySumSquared}
	Array of all statistics dependencies. More...

Private Attributes
friend	MetricsController
	MetricsController can access to protected types and variables. More...

Detailed Description

Class holding various statistics-related types and variables.

Definition at line 35 of file Statistics.h.

Member Enumeration Documentation

Stats

enum MetroCollect::Statistics::Stats : uint64_t

Bitwise type te select statistics.

Enumerator
StatsMin	Minimum.
StatsMax	Maximum.
StatsAverage	Average.
StatsStdDev	Standard deviation.
StatsNone	No statistics selected.
StatsAll	All statistics selected.

Definition at line 64 of file Statistics.h.

StatsDependency

enum MetroCollect::Statistics::StatsDependency : uint64_t

protected

Dependency tree of each statistic.

Enumerator
StatsDependencyMin	Statistics which require to compute minimum.
StatsDependencyMax	Statistics which require to compute maximum.
StatsDependencyStdDev	Statistics which require to compute standard deviation.
StatsDependencyAverage	Statistics which require to compute average.
StatsDependencySum	Statistics which require to compute sum.
StatsDependencySumSquared	Statistics which require to compute sum of squares.

Definition at line 84 of file Statistics.h.

StatsIndex

enum MetroCollect::Statistics::StatsIndex : uint8_t

protected

Associates a unique index to each statistic.

There are two kinds of statistics:

• public statistics that can be computed and published as metrics
• private intermediate statistics that are only used to compute other statistics

Enumerator
StatsIndexMin	Minimum.
StatsIndexMax	Maximum.
StatsIndexAverage	Average.
StatsIndexStdDev	Standard deviation.
StatsIndexIntermediateSum	Sum of value (intermediate statistic)
StatsIndexIntermediateSumSquared	Sum of squares of values (intermediate statistic)

Definition at line 45 of file Statistics.h.

Member Function Documentation

statsFromName()

Statistics::Stats MetroCollect::Statistics::statsFromName ( const std::string_view &  statName )

static

Convert a stat name to a stat value.

Definition at line 349 of file MetricsController.cc.

Here is the caller graph for this function:

statsRequiredForStat()

Statistics::Stats MetroCollect::Statistics::statsRequiredForStat ( Stats  stat )

static

Returns the stats which are required to compute this stat.

Definition at line 361 of file MetricsController.cc.

Here is the caller graph for this function:

Member Data Documentation

allStats

constexpr std::array<Stats, count> MetroCollect::Statistics::allStats = {StatsMin, StatsMax, StatsAverage, StatsStdDev}

static

Array of all available statistics.

Definition at line 73 of file Statistics.h.

count

constexpr size_t MetroCollect::Statistics::count = 4

static

Number of available statistics.

Definition at line 57 of file Statistics.h.

extraCount

constexpr size_t MetroCollect::Statistics::extraCount = count + 2

staticprotected

Number of statistics and intermediate values.

Definition at line 79 of file Statistics.h.

MetricsController

friend MetroCollect::Statistics::MetricsController

private

MetricsController can access to protected types and variables.

Definition at line 36 of file Statistics.h.

names

constexpr std::array<std::string_view, count> MetroCollect::Statistics::names = {"min"sv, "max"sv, "average"sv, "stdDev"sv}

static

Names of available statistics.

Definition at line 58 of file Statistics.h.

nameStatsAll

constexpr std::string_view MetroCollect::Statistics::nameStatsAll = "*"sv

static

Definition at line 59 of file Statistics.h.

StatsDependencies

constexpr std::array<StatsDependency, extraCount> MetroCollect::Statistics::StatsDependencies = {StatsDependencyMin, StatsDependencyMax, StatsDependencyAverage, StatsDependencyStdDev, StatsDependencySum, StatsDependencySumSquared}

staticprotected

Array of all statistics dependencies.

Definition at line 92 of file Statistics.h.

---

The documentation for this class was generated from the following files:

• MetroCollect/Statistics.h
• MetroCollect/MetricsController.cc
