Sources of network metrics extracted from Ethtool interface. More...

#include <SourceEthtool.h>

Inheritance diagram for MetroCollect::MetricsSource::SourceEthtool:

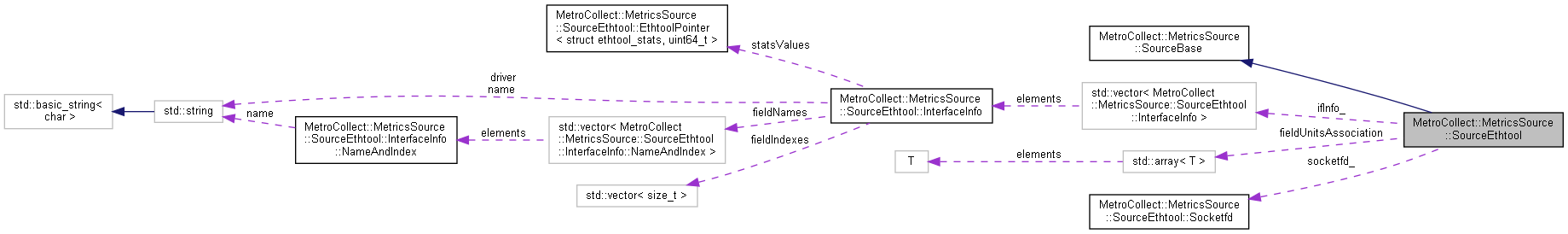

Collaboration diagram for MetroCollect::MetricsSource::SourceEthtool:

[legend]

Classes
class	EthtoolPointer
	Class managing a pointer to a dynamically sized type. More...

struct	InterfaceInfo
	Class to store the details and metrics names of a network interface. More...

struct	Socketfd
	Struct managing an Ethtool socket. More...

Public Member Functions
size_t	fieldCount () const noexcept override final
	Get the number of field the source has. More...

const std::vector< size_t >	indexesOfFieldName (const FieldName &fieldName, Interests *interests=nullptr) const noexcept override final
	Search for fields associated to a specific name. More...

const std::string	fieldNameSourcePrefix () const noexcept override final
	Get the prefix by which all field names should begin with. More...

const FieldInfo	fieldInfoAtIndex (size_t index) const noexcept override final
	Get details about a specific field. More...

const std::vector< FieldInfo >	allFieldsInfo () const noexcept override final
	Get all fields details, field which share a common name should appear only once. More...

void	fetchData (const Interests &interests, DataArray::Iterator current) override final
	Fetch the latest metrics. More...

void	computeDiff (const Interests &interests, DiffArray::Iterator diff, DataArray::ConstIterator current, DataArray::ConstIterator previous, double factor=1) noexcept override final
	Compute the variation (in appropriate unit) of metrics. More...

Public Member Functions inherited from MetroCollect::MetricsSource::SourceBase
	SourceBase (const SourceBase &)=delete
	Deleted copy constructor. More...

void	operator= (const SourceBase &)=delete
	Deleted copy operator. More...

Static Public Member Functions
static SourceEthtool &	get ()
	Get the Instance object. More...

Protected Member Functions
	SourceEthtool ()
	Private default constructor. More...

void	gatherIfData ()
	Gather details on interfaces. More...

InterfaceInfo::NameAndIndex	parseEthtoolString (std::string ethtoolString)
	Parse raw Ethtool metric name. More...

void	ixgbeIfFilter (InterfaceInfo &ifInfo)
	Filter out relevant metrics for ixgbe driver. More...

Protected Member Functions inherited from MetroCollect::MetricsSource::SourceBase
	SourceBase ()
	Protected default constructor. More...

	~SourceBase ()
	Protected default destructor. More...

Protected Attributes
std::vector< InterfaceInfo >	ifInfo_
	Array holding details of each network interface. More...

Socketfd	socketfd_
	Ethtool socket manager. More...

Static Protected Attributes
static constexpr std::string_view	sourcePrefix = "ethtool"sv
	Metrics name source prefix. More...

static constexpr std::string_view	fieldNameAll = "*"sv
	Metrics name wildcard. More...

static constexpr std::string_view	fieldNameInterfaceDescription = "interface"sv
	Metrics name category description. More...

static constexpr std::string_view	fieldNameIndexDescription = "index"sv
	Metrics name category description. More...

static constexpr std::array	fieldUnitsAssociation = { KeyUnit{"bytes"sv, "bytes"sv}, KeyUnit{"packets"sv, "packets"sv}, KeyUnit{"pkts"sv, "packets"sv} }
	Metric units associations. More...

static constexpr std::string_view	defaultUnit = ""sv
	Metric unit. More...

Detailed Description

Sources of network metrics extracted from Ethtool interface.

Definition at line 40 of file SourceEthtool.h.

Constructor & Destructor Documentation

◆ SourceEthtool()

MetroCollect::MetricsSource::SourceEthtool::SourceEthtool ( )

protected

Private default constructor.

Definition at line 65 of file SourceEthtool.cc.

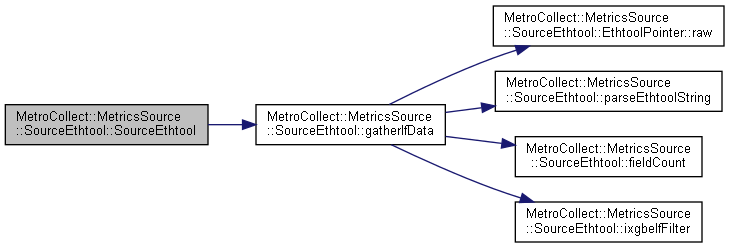

Here is the call graph for this function:

Member Function Documentation

◆ allFieldsInfo()

const std::vector< FieldInfo > MetroCollect::MetricsSource::SourceEthtool::allFieldsInfo ( ) const

finaloverridevirtualnoexcept

Get all fields details, field which share a common name should appear only once.

Returns: all fields details

Implements MetroCollect::MetricsSource::SourceBase.

Definition at line 253 of file SourceEthtool.cc.

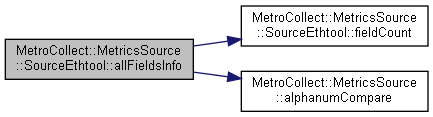

Here is the call graph for this function:

◆ computeDiff()

void MetroCollect::MetricsSource::SourceEthtool::computeDiff	(	const Interests &	interests,
		DiffArray::Iterator	diff,
		DataArray::ConstIterator	current,
		DataArray::ConstIterator	previous,
		double	factor = `1`
	)

finaloverridevirtualnoexcept

Compute the variation (in appropriate unit) of metrics.

Parameters

interests	interests boolean array to know for which fields metrics variation should be computed
diff	iterator to write metrics variation to
current	iterator to read latest metrics from
previous	iterator to read previous metrics from
factor	factor to convert to unit per second, if relevant

Implements MetroCollect::MetricsSource::SourceBase.

Definition at line 315 of file SourceEthtool.cc.

◆ fetchData()

void MetroCollect::MetricsSource::SourceEthtool::fetchData	(	const Interests &	interests,
		DataArray::Iterator	current
	)

finaloverridevirtual

Fetch the latest metrics.

Parameters

interests	boolean array to know for which fields metrics should be fetched
current	iterator to write metrics to

Implements MetroCollect::MetricsSource::SourceBase.

Definition at line 289 of file SourceEthtool.cc.

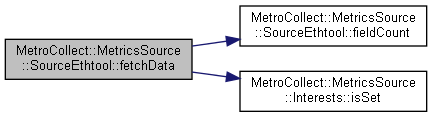

Here is the call graph for this function:

◆ fieldCount()

size_t MetroCollect::MetricsSource::SourceEthtool::fieldCount ( ) const

finaloverridevirtualnoexcept

Get the number of field the source has.

Returns: Number of fields of the source

Implements MetroCollect::MetricsSource::SourceBase.

Definition at line 197 of file SourceEthtool.cc.

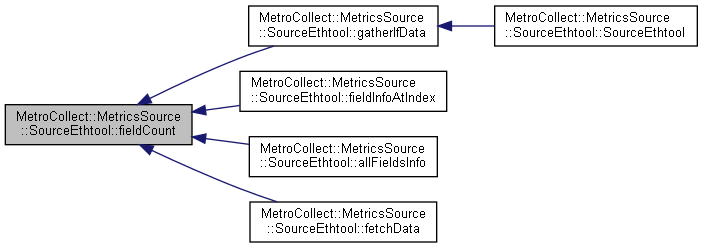

Here is the caller graph for this function:

◆ fieldInfoAtIndex()

const FieldInfo MetroCollect::MetricsSource::SourceEthtool::fieldInfoAtIndex ( size_t index ) const

finaloverridevirtualnoexcept

Get details about a specific field.

Parameters

index index of the field to get details of

Returns: details of the field

Implements MetroCollect::MetricsSource::SourceBase.

Definition at line 235 of file SourceEthtool.cc.

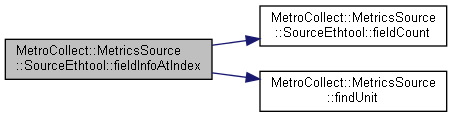

Here is the call graph for this function:

◆ fieldNameSourcePrefix()

const std::string MetroCollect::MetricsSource::SourceEthtool::fieldNameSourcePrefix ( ) const

finaloverridevirtualnoexcept

Get the prefix by which all field names should begin with.

Returns: the source's names prefix

Implements MetroCollect::MetricsSource::SourceBase.

Definition at line 231 of file SourceEthtool.cc.

◆ gatherIfData()

void MetroCollect::MetricsSource::SourceEthtool::gatherIfData ( )

protected

Gather details on interfaces.

Definition at line 70 of file SourceEthtool.cc.

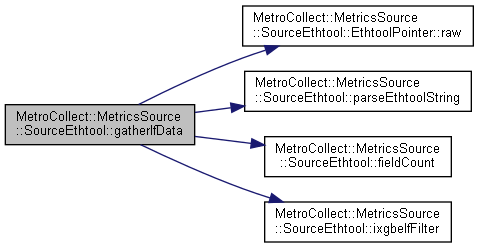

Here is the call graph for this function:

Here is the caller graph for this function:

◆ get()

static SourceEthtool& MetroCollect::MetricsSource::SourceEthtool::get ( )

inlinestatic

Get the Instance object.

Definition at line 247 of file SourceEthtool.h.

◆ indexesOfFieldName()

const std::vector< size_t > MetroCollect::MetricsSource::SourceEthtool::indexesOfFieldName	(	const FieldName &	fieldName,
		Interests *	interests = `nullptr`
	)		const

finaloverridevirtualnoexcept

Search for fields associated to a specific name.

Parameters

fieldName	the name of the fields to search
interests	if the pointer is not `nullptr`, the interest bit corresponding to the fields will be set

Returns: the indexes associated with the field name

Implements MetroCollect::MetricsSource::SourceBase.

Definition at line 204 of file SourceEthtool.cc.

◆ ixgbeIfFilter()

void MetroCollect::MetricsSource::SourceEthtool::ixgbeIfFilter ( InterfaceInfo & ifInfo )

protected

Filter out relevant metrics for ixgbe driver.

Definition at line 176 of file SourceEthtool.cc.

Here is the caller graph for this function:

◆ parseEthtoolString()

SourceEthtool::InterfaceInfo::NameAndIndex MetroCollect::MetricsSource::SourceEthtool::parseEthtoolString ( std::string ethtoolString )

protected

Parse raw Ethtool metric name.

Definition at line 129 of file SourceEthtool.cc.

Here is the caller graph for this function:

Member Data Documentation

◆ defaultUnit

constexpr std::string_view MetroCollect::MetricsSource::SourceEthtool::defaultUnit = ""sv

staticprotected

Metric unit.

Definition at line 47 of file SourceEthtool.h.

◆ fieldNameAll

constexpr std::string_view MetroCollect::MetricsSource::SourceEthtool::fieldNameAll = "*"sv

staticprotected

Metrics name wildcard.

Definition at line 43 of file SourceEthtool.h.

◆ fieldNameIndexDescription

constexpr std::string_view MetroCollect::MetricsSource::SourceEthtool::fieldNameIndexDescription = "index"sv

staticprotected

Metrics name category description.

Definition at line 45 of file SourceEthtool.h.

◆ fieldNameInterfaceDescription

constexpr std::string_view MetroCollect::MetricsSource::SourceEthtool::fieldNameInterfaceDescription = "interface"sv

staticprotected

Metrics name category description.

Definition at line 44 of file SourceEthtool.h.

◆ fieldUnitsAssociation

constexpr std::array MetroCollect::MetricsSource::SourceEthtool::fieldUnitsAssociation = { KeyUnit{"bytes"sv, "bytes"sv}, KeyUnit{"packets"sv, "packets"sv}, KeyUnit{"pkts"sv, "packets"sv} }

staticprotected

Metric units associations.

Definition at line 46 of file SourceEthtool.h.

◆ ifInfo_

std::vector<InterfaceInfo> MetroCollect::MetricsSource::SourceEthtool::ifInfo_

protected

Array holding details of each network interface.

Definition at line 235 of file SourceEthtool.h.

◆ socketfd_

Socketfd MetroCollect::MetricsSource::SourceEthtool::socketfd_

protected

Ethtool socket manager.

Definition at line 236 of file SourceEthtool.h.

◆ sourcePrefix

constexpr std::string_view MetroCollect::MetricsSource::SourceEthtool::sourcePrefix = "ethtool"sv

staticprotected

Metrics name source prefix.

Definition at line 42 of file SourceEthtool.h.

The documentation for this class was generated from the following files:

MetroCollect/SourceEthtool.h
MetroCollect/SourceEthtool.cc
