Singleton abstract class, base class of all metric sources classes. More...

#include <Source.h>

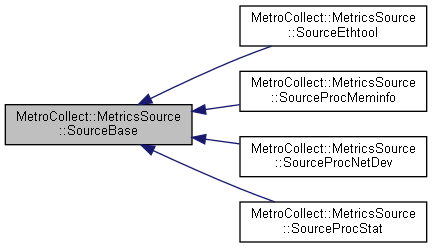

Inheritance diagram for MetroCollect::MetricsSource::SourceBase:

[legend]

Public Member Functions
	SourceBase (const SourceBase &)=delete
	Deleted copy constructor. More...

void	operator= (const SourceBase &)=delete
	Deleted copy operator. More...

virtual size_t	fieldCount () const noexcept=0
	Get the number of field the source has. More...

virtual const std::vector< size_t >	indexesOfFieldName (const FieldName &fieldName, Interests *interests=nullptr) const noexcept=0
	Search for fields associated to a specific name. More...

virtual const std::string	fieldNameSourcePrefix () const noexcept=0
	Get the prefix by which all field names should begin with. More...

virtual const FieldInfo	fieldInfoAtIndex (size_t index) const noexcept=0
	Get details about a specific field. More...

virtual const std::vector< FieldInfo >	allFieldsInfo () const noexcept=0
	Get all fields details, field which share a common name should appear only once. More...

virtual void	fetchData (const Interests &interests, DataArray::Iterator current)=0
	Fetch the latest metrics. More...

virtual void	computeDiff (const Interests &interests, DiffArray::Iterator diff, DataArray::ConstIterator current, DataArray::ConstIterator previous, double factor=1) noexcept=0
	Compute the variation (in appropriate unit) of metrics. More...

Protected Member Functions
	SourceBase ()
	Protected default constructor. More...

	~SourceBase ()
	Protected default destructor. More...

Detailed Description

Singleton abstract class, base class of all metric sources classes.

A subclass should override all methods of this class.

Definition at line 42 of file Source.h.

Constructor & Destructor Documentation

◆ SourceBase() [1/2]

MetroCollect::MetricsSource::SourceBase::SourceBase ( )

inlineprotected

Protected default constructor.

Definition at line 44 of file Source.h.

◆ ~SourceBase()

MetroCollect::MetricsSource::SourceBase::~SourceBase ( )

inlineprotected

Protected default destructor.

Definition at line 45 of file Source.h.

◆ SourceBase() [2/2]

MetroCollect::MetricsSource::SourceBase::SourceBase ( const SourceBase & )

delete

Deleted copy constructor.

Member Function Documentation

◆ allFieldsInfo()

virtual const std::vector<FieldInfo> MetroCollect::MetricsSource::SourceBase::allFieldsInfo ( ) const

pure virtualnoexcept

Get all fields details, field which share a common name should appear only once.

Returns: all fields details

Implemented in MetroCollect::MetricsSource::SourceEthtool, MetroCollect::MetricsSource::SourceProcStat, MetroCollect::MetricsSource::SourceProcNetDev, and MetroCollect::MetricsSource::SourceProcMeminfo.

◆ computeDiff()

virtual void MetroCollect::MetricsSource::SourceBase::computeDiff	(	const Interests &	interests,
		DiffArray::Iterator	diff,
		DataArray::ConstIterator	current,
		DataArray::ConstIterator	previous,
		double	factor = `1`
	)

pure virtualnoexcept

Compute the variation (in appropriate unit) of metrics.

Parameters

interests	interests boolean array to know for which fields metrics variation should be computed
diff	iterator to write metrics variation to
current	iterator to read latest metrics from
previous	iterator to read previous metrics from
factor	factor to convert to unit per second, if relevant

Implemented in MetroCollect::MetricsSource::SourceEthtool, MetroCollect::MetricsSource::SourceProcStat, MetroCollect::MetricsSource::SourceProcNetDev, and MetroCollect::MetricsSource::SourceProcMeminfo.

◆ fetchData()

virtual void MetroCollect::MetricsSource::SourceBase::fetchData	(	const Interests &	interests,
		DataArray::Iterator	current
	)

pure virtual

Fetch the latest metrics.

Parameters

interests	boolean array to know for which fields metrics should be fetched
current	iterator to write metrics to

Implemented in MetroCollect::MetricsSource::SourceEthtool, MetroCollect::MetricsSource::SourceProcStat, MetroCollect::MetricsSource::SourceProcNetDev, and MetroCollect::MetricsSource::SourceProcMeminfo.

◆ fieldCount()

virtual size_t MetroCollect::MetricsSource::SourceBase::fieldCount ( ) const

pure virtualnoexcept

Get the number of field the source has.

Returns: Number of fields of the source

Implemented in MetroCollect::MetricsSource::SourceEthtool, MetroCollect::MetricsSource::SourceProcStat, MetroCollect::MetricsSource::SourceProcNetDev, and MetroCollect::MetricsSource::SourceProcMeminfo.

◆ fieldInfoAtIndex()

virtual const FieldInfo MetroCollect::MetricsSource::SourceBase::fieldInfoAtIndex ( size_t index ) const

pure virtualnoexcept

Get details about a specific field.

Parameters

index index of the field to get details of

Returns: details of the field

Implemented in MetroCollect::MetricsSource::SourceEthtool, MetroCollect::MetricsSource::SourceProcStat, MetroCollect::MetricsSource::SourceProcNetDev, and MetroCollect::MetricsSource::SourceProcMeminfo.

◆ fieldNameSourcePrefix()

virtual const std::string MetroCollect::MetricsSource::SourceBase::fieldNameSourcePrefix ( ) const

pure virtualnoexcept

Get the prefix by which all field names should begin with.

Returns: the source's names prefix

Implemented in MetroCollect::MetricsSource::SourceEthtool, MetroCollect::MetricsSource::SourceProcStat, MetroCollect::MetricsSource::SourceProcNetDev, and MetroCollect::MetricsSource::SourceProcMeminfo.

◆ indexesOfFieldName()

virtual const std::vector<size_t> MetroCollect::MetricsSource::SourceBase::indexesOfFieldName	(	const FieldName &	fieldName,
		Interests *	interests = `nullptr`
	)		const

pure virtualnoexcept

Search for fields associated to a specific name.

Parameters

fieldName	the name of the fields to search
interests	if the pointer is not `nullptr`, the interest bit corresponding to the fields will be set

Returns: the indexes associated with the field name

Implemented in MetroCollect::MetricsSource::SourceEthtool, MetroCollect::MetricsSource::SourceProcStat, MetroCollect::MetricsSource::SourceProcNetDev, and MetroCollect::MetricsSource::SourceProcMeminfo.

◆ operator=()

void MetroCollect::MetricsSource::SourceBase::operator= ( const SourceBase & )

delete

Deleted copy operator.

The documentation for this class was generated from the following file:

MetroCollect/Source.h
