Sources of network metrics extracted from the file /proc/net/dev. More...

#include <SourceProcNetDev.h>

Inheritance diagram for MetroCollect::MetricsSource::SourceProcNetDev:

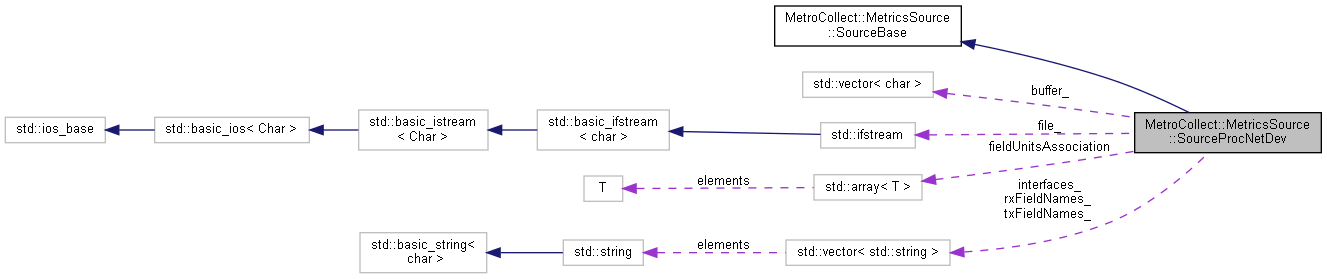

Collaboration diagram for MetroCollect::MetricsSource::SourceProcNetDev:

[legend]

Public Member Functions
size_t	fieldCount () const noexcept override final
	Get the number of field the source has. More...

const std::vector< size_t >	indexesOfFieldName (const FieldName &fieldName, Interests *interests=nullptr) const noexcept override final
	Search for fields associated to a specific name. More...

const std::string	fieldNameSourcePrefix () const noexcept override final
	Get the prefix by which all field names should begin with. More...

const FieldInfo	fieldInfoAtIndex (size_t index) const noexcept override final
	Get details about a specific field. More...

const std::vector< FieldInfo >	allFieldsInfo () const noexcept override final
	Get all fields details, field which share a common name should appear only once. More...

void	fetchData (const Interests &interests, DataArray::Iterator current) override final
	Fetch the latest metrics. More...

void	computeDiff (const Interests &interests, DiffArray::Iterator diff, DataArray::ConstIterator current, DataArray::ConstIterator previous, double factor=1) noexcept override final
	Compute the variation (in appropriate unit) of metrics. More...

Public Member Functions inherited from MetroCollect::MetricsSource::SourceBase
	SourceBase (const SourceBase &)=delete
	Deleted copy constructor. More...

void	operator= (const SourceBase &)=delete
	Deleted copy operator. More...

Static Public Member Functions
static SourceProcNetDev &	get ()
	Get the Instance object. More...

Protected Member Functions
	SourceProcNetDev ()
	Private default constructor. More...

void	parseFields ()
	File parser function. More...

Protected Member Functions inherited from MetroCollect::MetricsSource::SourceBase
	SourceBase ()
	Protected default constructor. More...

	~SourceBase ()
	Protected default destructor. More...

Protected Attributes
std::ifstream	file_
	File descriptor. More...

std::vector< char >	buffer_
	Buffer to put file contents into. More...

std::vector< std::string >	interfaces_
	Network interfaces names. More...

std::vector< std::string >	rxFieldNames_
	Reception metric names. More...

std::vector< std::string >	txFieldNames_
	Transmission metric names. More...

Static Protected Attributes
static constexpr std::string_view	filePath = "/proc/1/net/dev"sv
	Network metrics file path. More...

static constexpr std::string_view	sourcePrefix = "network"sv
	Metrics name source prefix. More...

static constexpr std::string_view	fieldNameInterfaceDescription = "interface"sv
	Metrics name category description. More...

static constexpr std::string_view	fieldRecieve = "rx"sv
	Metrics name category. More...

static constexpr std::string_view	fieldTransmit = "tx"sv
	Metrics name category. More...

static constexpr std::string_view	fieldNameAll = "*"sv
	Metrics name wildcard. More...

static constexpr std::array	fieldUnitsAssociation = { KeyUnit{"bytes"sv, "bytes"sv}, KeyUnit{"packets"sv, "packets"sv}, KeyUnit{"compressed"sv, "packets"sv}, KeyUnit{"multicast"sv, "packets"sv} }
	Metric units associations. More...

static constexpr std::string_view	defaultUnit = "errors"sv
	Metric unit. More...

Detailed Description

Sources of network metrics extracted from the file /proc/net/dev.

Definition at line 38 of file SourceProcNetDev.h.

Constructor & Destructor Documentation

◆ SourceProcNetDev()

MetroCollect::MetricsSource::SourceProcNetDev::SourceProcNetDev ( )

protected

Private default constructor.

Definition at line 28 of file SourceProcNetDev.cc.

Here is the call graph for this function:

Member Function Documentation

◆ allFieldsInfo()

const std::vector< FieldInfo > MetroCollect::MetricsSource::SourceProcNetDev::allFieldsInfo ( ) const

finaloverridevirtualnoexcept

Get all fields details, field which share a common name should appear only once.

Returns: all fields details

Implements MetroCollect::MetricsSource::SourceBase.

Definition at line 142 of file SourceProcNetDev.cc.

Here is the call graph for this function:

◆ computeDiff()

void MetroCollect::MetricsSource::SourceProcNetDev::computeDiff	(	const Interests &	interests,
		DiffArray::Iterator	diff,
		DataArray::ConstIterator	current,
		DataArray::ConstIterator	previous,
		double	factor = `1`
	)

finaloverridevirtualnoexcept

Compute the variation (in appropriate unit) of metrics.

Parameters

interests	interests boolean array to know for which fields metrics variation should be computed
diff	iterator to write metrics variation to
current	iterator to read latest metrics from
previous	iterator to read previous metrics from
factor	factor to convert to unit per second, if relevant

Implements MetroCollect::MetricsSource::SourceBase.

Definition at line 183 of file SourceProcNetDev.cc.

◆ fetchData()

void MetroCollect::MetricsSource::SourceProcNetDev::fetchData	(	const Interests &	interests,
		DataArray::Iterator	current
	)

finaloverridevirtual

Fetch the latest metrics.

Parameters

interests	boolean array to know for which fields metrics should be fetched
current	iterator to write metrics to

Implements MetroCollect::MetricsSource::SourceBase.

Definition at line 152 of file SourceProcNetDev.cc.

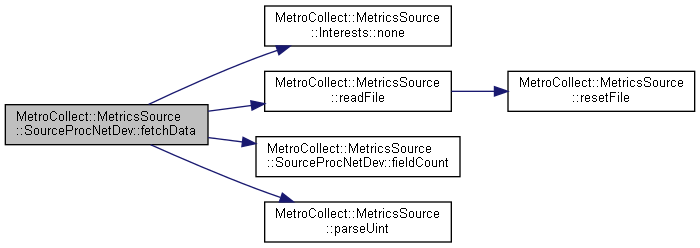

Here is the call graph for this function:

◆ fieldCount()

size_t MetroCollect::MetricsSource::SourceProcNetDev::fieldCount ( ) const

finaloverridevirtualnoexcept

Get the number of field the source has.

Returns: Number of fields of the source

Implements MetroCollect::MetricsSource::SourceBase.

Definition at line 82 of file SourceProcNetDev.cc.

Here is the caller graph for this function:

◆ fieldInfoAtIndex()

const FieldInfo MetroCollect::MetricsSource::SourceProcNetDev::fieldInfoAtIndex ( size_t index ) const

finaloverridevirtualnoexcept

Get details about a specific field.

Parameters

index index of the field to get details of

Returns: details of the field

Implements MetroCollect::MetricsSource::SourceBase.

Definition at line 129 of file SourceProcNetDev.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ fieldNameSourcePrefix()

const std::string MetroCollect::MetricsSource::SourceProcNetDev::fieldNameSourcePrefix ( ) const

finaloverridevirtualnoexcept

Get the prefix by which all field names should begin with.

Returns: the source's names prefix

Implements MetroCollect::MetricsSource::SourceBase.

Definition at line 125 of file SourceProcNetDev.cc.

◆ get()

static SourceProcNetDev& MetroCollect::MetricsSource::SourceProcNetDev::get ( )

inlinestatic

Get the Instance object.

Definition at line 63 of file SourceProcNetDev.h.

◆ indexesOfFieldName()

const std::vector< size_t > MetroCollect::MetricsSource::SourceProcNetDev::indexesOfFieldName	(	const FieldName &	fieldName,
		Interests *	interests = `nullptr`
	)		const

finaloverridevirtualnoexcept

Search for fields associated to a specific name.

Parameters

fieldName	the name of the fields to search
interests	if the pointer is not `nullptr`, the interest bit corresponding to the fields will be set

Returns: the indexes associated with the field name

Implements MetroCollect::MetricsSource::SourceBase.

Definition at line 86 of file SourceProcNetDev.cc.

◆ parseFields()

void MetroCollect::MetricsSource::SourceProcNetDev::parseFields ( )

protected

File parser function.

Definition at line 34 of file SourceProcNetDev.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ buffer_

std::vector<char> MetroCollect::MetricsSource::SourceProcNetDev::buffer_

protected

Buffer to put file contents into.

Definition at line 51 of file SourceProcNetDev.h.

◆ defaultUnit

constexpr std::string_view MetroCollect::MetricsSource::SourceProcNetDev::defaultUnit = "errors"sv

staticprotected

Metric unit.

Definition at line 48 of file SourceProcNetDev.h.

◆ fieldNameAll

constexpr std::string_view MetroCollect::MetricsSource::SourceProcNetDev::fieldNameAll = "*"sv

staticprotected

Metrics name wildcard.

Definition at line 46 of file SourceProcNetDev.h.

◆ fieldNameInterfaceDescription

constexpr std::string_view MetroCollect::MetricsSource::SourceProcNetDev::fieldNameInterfaceDescription = "interface"sv

staticprotected

Metrics name category description.

Definition at line 43 of file SourceProcNetDev.h.

◆ fieldRecieve

constexpr std::string_view MetroCollect::MetricsSource::SourceProcNetDev::fieldRecieve = "rx"sv

staticprotected

Metrics name category.

Definition at line 44 of file SourceProcNetDev.h.

◆ fieldTransmit

constexpr std::string_view MetroCollect::MetricsSource::SourceProcNetDev::fieldTransmit = "tx"sv

staticprotected

Metrics name category.

Definition at line 45 of file SourceProcNetDev.h.

◆ fieldUnitsAssociation

constexpr std::array MetroCollect::MetricsSource::SourceProcNetDev::fieldUnitsAssociation = { KeyUnit{"bytes"sv, "bytes"sv}, KeyUnit{"packets"sv, "packets"sv}, KeyUnit{"compressed"sv, "packets"sv}, KeyUnit{"multicast"sv, "packets"sv} }

staticprotected

Metric units associations.

Definition at line 47 of file SourceProcNetDev.h.

◆ file_

std::ifstream MetroCollect::MetricsSource::SourceProcNetDev::file_

protected

File descriptor.

Definition at line 50 of file SourceProcNetDev.h.

◆ filePath

constexpr std::string_view MetroCollect::MetricsSource::SourceProcNetDev::filePath = "/proc/1/net/dev"sv

staticprotected

Network metrics file path.

Definition at line 40 of file SourceProcNetDev.h.

◆ interfaces_

std::vector<std::string> MetroCollect::MetricsSource::SourceProcNetDev::interfaces_

protected

Network interfaces names.

Definition at line 52 of file SourceProcNetDev.h.

◆ rxFieldNames_

std::vector<std::string> MetroCollect::MetricsSource::SourceProcNetDev::rxFieldNames_

protected

Reception metric names.

Definition at line 53 of file SourceProcNetDev.h.

◆ sourcePrefix

constexpr std::string_view MetroCollect::MetricsSource::SourceProcNetDev::sourcePrefix = "network"sv

staticprotected

Metrics name source prefix.

Definition at line 42 of file SourceProcNetDev.h.

◆ txFieldNames_

std::vector<std::string> MetroCollect::MetricsSource::SourceProcNetDev::txFieldNames_

protected

Transmission metric names.

Definition at line 54 of file SourceProcNetDev.h.

The documentation for this class was generated from the following files:

MetroCollect/SourceProcNetDev.h
MetroCollect/SourceProcNetDev.cc
