MetroCollectFile Struct Reference

Small struct to implement MetricsController delegate. More...

Inheritance diagram for MetroCollectFile:

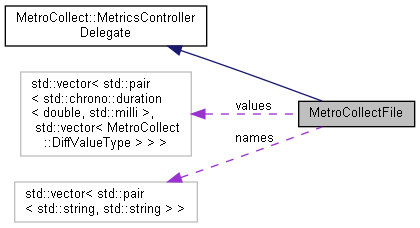

Collaboration diagram for MetroCollectFile:

Public Member Functions
void	set (size_t iterations, std::vector< std::pair< std::string, std::string >> metricsNames)
	Update members. More...
void	metricsContollerCollectedMetricsValues (const MetroCollect::MetricsController &, const MetroCollect::MetricsDiffArray &diff, const MetroCollect::MetricsDataArray &, const MetroCollect::MetricsDataArray &) override
	Function called every time the MetricsController has collected new values. More...
void	metricsContollerCollectedMetricsStats (const MetroCollect::MetricsController &, const MetroCollect::MetricsController::MetricsStats &) override
	Function called every time the MetricsController has computed statistics. More...
bool	metricsContollerShouldStopCollectingMetrics (const MetroCollect::MetricsController &) override
	Function called after each iteration to ask the delegate whether the controller should stop collecting metrics. More...

Public Attributes
size_t	i = 0
	Iteration index. More...
size_t	iterationCount
	Number of iterations remaining to be done. More...
std::vector< std::pair< std::chrono::duration< double, std::milli >, std::vector< MetroCollect::DiffValueType > > >	values
	Array of all collected metrics and their relative timestamps. More...
std::vector< std::pair< std::string, std::string > >	names
	Name of collected metrics. More...
std::chrono::time_point< std::chrono::system_clock >	start
	Start time of metric collection. More...

Detailed Description

Small struct to implement MetricsController delegate.

Definition at line 117 of file MetroCollectFile.cc.

Member Function Documentation

metricsContollerCollectedMetricsStats()

void MetroCollectFile::metricsContollerCollectedMetricsStats ( const MetroCollect::MetricsController &  metricsController, const MetroCollect::MetricsController::MetricsStats &  metricsStats  )

inlineoverridevirtual

Function called every time the MetricsController has computed statistics.

Parameters

metricsController	the calling MetricsController
metricsStats	computed statistics

Implements MetroCollect::MetricsControllerDelegate.

Definition at line 144 of file MetroCollectFile.cc.

metricsContollerCollectedMetricsValues()

void MetroCollectFile::metricsContollerCollectedMetricsValues ( const MetroCollect::MetricsController &  metricsController, const MetroCollect::MetricsDiffArray &  metricsDiff, const MetroCollect::MetricsDataArray &  previousMetrics, const MetroCollect::MetricsDataArray &  currentMetrics  )

inlineoverridevirtual

Function called every time the MetricsController has collected new values.

Parameters

metricsController	the calling MetricsController
metricsDiff	computed metrics differences
previousMetrics	earlier collected metrics
currentMetrics	latest collected metrics

Implements MetroCollect::MetricsControllerDelegate.

Definition at line 138 of file MetroCollectFile.cc.

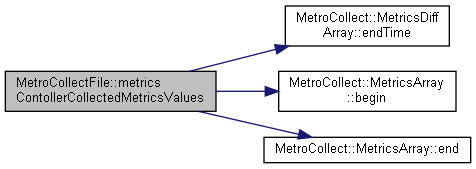

Here is the call graph for this function:

metricsContollerShouldStopCollectingMetrics()

bool MetroCollectFile::metricsContollerShouldStopCollectingMetrics ( const MetroCollect::MetricsController &  metricsController )

inlineoverridevirtual

Function called after each iteration to ask the delegate whether the controller should stop collecting metrics.

Parameters

metricsController

the calling MetricsController

Returns

true if the controller should stop

false otherwise

Implements MetroCollect::MetricsControllerDelegate.

Definition at line 147 of file MetroCollectFile.cc.

set()

void MetroCollectFile::set ( size_t  iterations, std::vector< std::pair< std::string, std::string >>  metricsNames  )

inline

Update members.

Parameters

iterations	sets the number of iterations
metricsNames	sets the metric names

Definition at line 130 of file MetroCollectFile.cc.

Here is the caller graph for this function:

Member Data Documentation

i

size_t MetroCollectFile::i = 0

Iteration index.

Definition at line 118 of file MetroCollectFile.cc.

iterationCount

size_t MetroCollectFile::iterationCount

Number of iterations remaining to be done.

Definition at line 119 of file MetroCollectFile.cc.

names

std::vector<std::pair<std::string, std::string> > MetroCollectFile::names

Name of collected metrics.

Definition at line 121 of file MetroCollectFile.cc.

start

std::chrono::time_point<std::chrono::system_clock> MetroCollectFile::start

Start time of metric collection.

Definition at line 122 of file MetroCollectFile.cc.

values

std::vector<std::pair<std::chrono::duration<double, std::milli>, std::vector<MetroCollect::DiffValueType> > > MetroCollectFile::values

Array of all collected metrics and their relative timestamps.

Definition at line 120 of file MetroCollectFile.cc.

---

The documentation for this struct was generated from the following file:

• MetroCollectFile/MetroCollectFile.cc
