Interface class between MetricsController and Snap's streaming-collector plugin class. More...

#include <SnapStreamInterface.h>

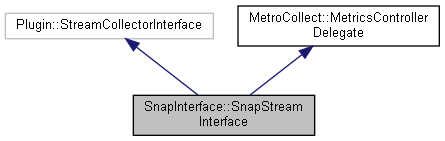

Inheritance diagram for SnapInterface::SnapStreamInterface:

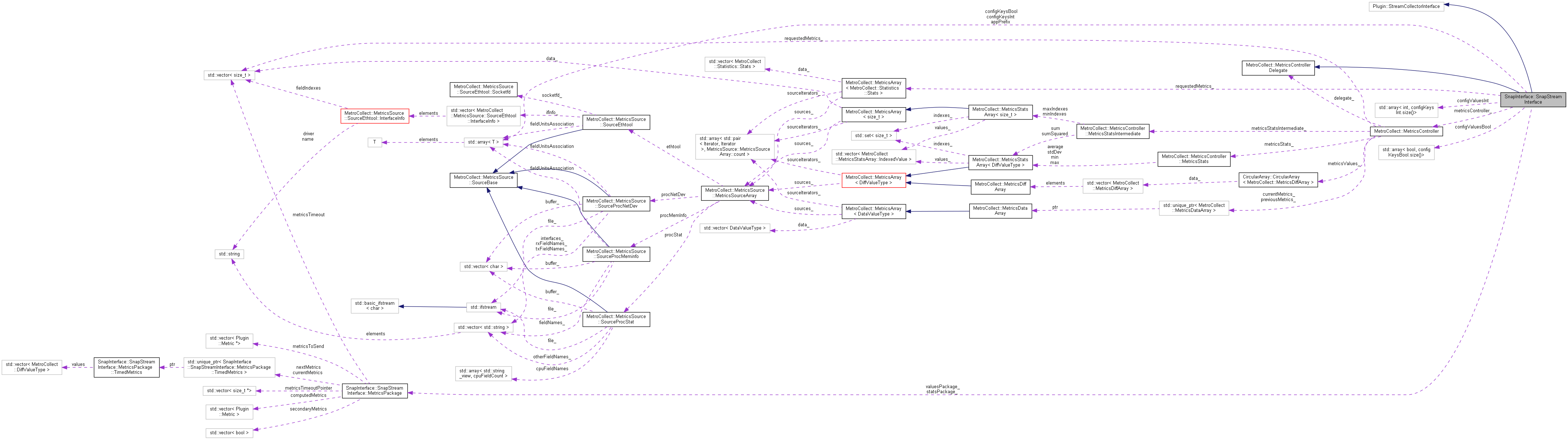

Collaboration diagram for SnapInterface::SnapStreamInterface:

[legend]

Classes
struct	MetricsPackage
	Strcut to store Snap metric objects and metric data to make it faster to send them to Snap. More...

Public Member Functions
	SnapStreamInterface ()
	Construct a new Snap Stream Interface object. More...

const Plugin::ConfigPolicy	get_config_policy () override final
	Returns the plugin configuration keys and default values to Snap. More...

std::vector< Plugin::Metric >	get_metric_types (Plugin::Config cfg) override final
	Returns all metrics that can be fetched by the plugin to Snap. More...

void	get_metrics_in (std::vector< Plugin::Metric > &metsIn) override final
	Gets the user's requested metrics from Snap. More...

void	stream_metrics () override final
	Stream metrics to Snap. More...

void	metricsContollerCollectedMetricsValues (const MetroCollect::MetricsController &metricsController, const MetroCollect::MetricsDiffArray &metricsDiff, const MetroCollect::MetricsDataArray &previousMetrics, const MetroCollect::MetricsDataArray &currentMetrics) override final
	Function called every time the MetricsController has collected new values. More...

void	metricsContollerCollectedMetricsStats (const MetroCollect::MetricsController &metricsController, const MetroCollect::MetricsController::MetricsStats &metricsStats) override final
	Function called every time the MetricsController has computed statistics. More...

bool	metricsContollerShouldStopCollectingMetrics (const MetroCollect::MetricsController &metricsController) override final
	Function called after each iteration to ask the delegate whether the controller should stop collecting metrics. More...

Static Public Attributes
static constexpr int	appVersion = 2
	Snap plugin version. More...

static constexpr std::string_view	appName = "metrocollect"sv
	Snap plugin name. More...

Protected Member Functions
void	setConfig (const Plugin::Config &cfg)
	Configures the plugin and the controller accordingly, unspecified values are reset to default. More...

void	parseSnapMetrics (const std::vector< Plugin::Metric > &metrics)
	Generate requestedMetrics array from list of Snap metrics. More...

void	insertAppPrefixToNamespace (std::vector< std::string > &ns)
	Inserts plugin name prefix into Snap namespace. More...

void	createRequestedMetrics (MetricsPackage &package, std::string suffix, std::function< bool(MetroCollect::Statistics::Stats, bool *)> condition)
	Configures a MetricsPackage object according to requested metrics. More...

void	fillMetricsPackage (MetricsPackage &package)
	Initializes a MetricsPackage sub-sampling counters. More...

void	sendMetrics (MetricsPackage &package, std::function< void(MetricsPackage::TimedMetrics &)> copyMetrics)
	Filters and sends metrics form a package to Snap. More...

Protected Attributes
MetroCollect::MetricsController	metricsController_
	MetricsController used to collect statistics. More...

MetroCollect::MetricsArray< MetroCollect::Statistics::Stats >	requestedMetrics_
	Array of requested metrics. More...

size_t	unchangedMetricsTimeout_
	Sub-sampling period for constant metrics. More...

MetricsPackage	valuesPackage_
	MetricsPackage for metrics from raw counters variations. More...

MetricsPackage	statsPackage_
	MetricsPackage for metrics from computed statistics. More...

Static Protected Attributes
static constexpr std::array	appPrefix = {"cfm"sv}
	Snap metric name prefix. More...

static constexpr std::string_view	configKeySendValues = "SendValues"sv
	Snap plugin configuration key. More...

static constexpr std::string_view	configKeySendStats = "SendStats"sv
	Snap plugin configuration key. More...

static constexpr std::string_view	configKeySamplingInterval = "SamplingInterval"sv
	Snap plugin configuration key. More...

static constexpr std::string_view	configKeyProcessingWindowLength = "ProcessingWindowLength"sv
	Snap plugin configuration key. More...

static constexpr std::string_view	configKeyProcessingWindowOverlap = "ProcessingWindowOverlap"sv
	Snap plugin configuration key. More...

static constexpr std::string_view	configKeyConvertToUnitsPerSecond = "ConvertToUnitsPerSecond"sv
	Snap plugin configuration key. More...

static constexpr std::string_view	configKeyUnchangedMetricTimeout = "UnchangedMetricTimeout"sv
	Snap plugin configuration key. More...

static constexpr std::string_view	configKeyMaxCollectDuration = "MaxCollectDuration"sv
	Snap plugin configuration key. More...

static constexpr std::string_view	configKeyMaxMetricsBuffer = "MaxMetricsBuffer"sv
	Snap plugin configuration key. More...

static constexpr std::array	configKeysInt = {configKeySamplingInterval, configKeyProcessingWindowLength, configKeyProcessingWindowOverlap, configKeyUnchangedMetricTimeout, configKeyMaxCollectDuration, configKeyMaxMetricsBuffer}
	Array of integer-valued configuration keys. More...

static constexpr std::array	configKeysBool = {configKeySendValues, configKeySendStats, configKeyConvertToUnitsPerSecond}
	Array of boolean-valued configuration keys. More...

static constexpr bool	defaultSendValues = false
	Snap plugin configuration default value. More...

static constexpr bool	defaultSendStats = true
	Snap plugin configuration default value. More...

static constexpr size_t	defaultUnchangedMetricTimeout = 300
	Snap plugin configuration default value. More...

static constexpr std::chrono::seconds	defaultMaxCollectDuration = 0s
	Snap plugin configuration default value. More...

static constexpr size_t	defaultMaxMetricsBuffer = 0
	Snap plugin configuration default value. More...

static constexpr std::array< int, configKeysInt.size()>	configValuesInt = {MetroCollect::MetricsController::defaultSamplingInterval.count(), MetroCollect::MetricsController::defaultProcessingWindowLength, MetroCollect::MetricsController::defaultProcessingWindowOverlap, SnapStreamInterface::defaultUnchangedMetricTimeout, SnapStreamInterface::defaultMaxCollectDuration.count(), SnapStreamInterface::defaultMaxMetricsBuffer}
	Array of integer-valued configuration default values. More...

static constexpr std::array< bool, configKeysBool.size()>	configValuesBool = {defaultSendValues, defaultSendStats, MetroCollect::MetricsController::defaultConvertToUnitsPerSecond}
	Array of boolean-valued configuration default values. More...

static constexpr std::string_view	statNamespaceLastComponent = "value"sv
	Snap metric name category. More...

static constexpr std::string_view	statNamespaceDescription = "statistic"sv
	Snap metric name description. More...

Detailed Description

Interface class between MetricsController and Snap's streaming-collector plugin class.

Definition at line 41 of file SnapStreamInterface.h.

Constructor & Destructor Documentation

◆ SnapStreamInterface()

SnapInterface::SnapStreamInterface::SnapStreamInterface ( )

Construct a new Snap Stream Interface object.

Definition at line 29 of file SnapStreamInterface.cc.

Member Function Documentation

◆ createRequestedMetrics()

void SnapInterface::SnapStreamInterface::createRequestedMetrics	(	MetricsPackage &	package,
		std::string	suffix,
		std::function< bool(MetroCollect::Statistics::Stats, bool *)>	condition
	)

protected

Configures a MetricsPackage object according to requested metrics.

Parameters

package	package to configure
suffix	suffix to add to all package's metrics names (generally a statistic name)
condition	boolean function specifying whether a requested metric should be included, and whether it is a primary metric

Definition at line 95 of file SnapStreamInterface.cc.

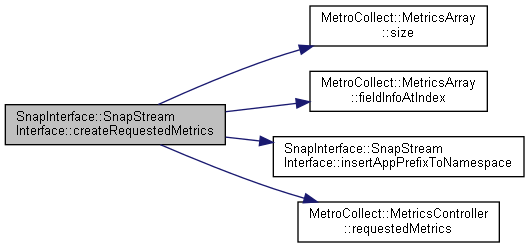

Here is the call graph for this function:

Here is the caller graph for this function:

◆ fillMetricsPackage()

void SnapInterface::SnapStreamInterface::fillMetricsPackage ( MetricsPackage & package )

protected

Initializes a MetricsPackage sub-sampling counters.

Parameters

package

Definition at line 118 of file SnapStreamInterface.cc.

Here is the caller graph for this function:

◆ get_config_policy()

const Plugin::ConfigPolicy SnapInterface::SnapStreamInterface::get_config_policy ( )

finaloverride

Returns the plugin configuration keys and default values to Snap.

Returns: The plugin default configuration

Definition at line 172 of file SnapStreamInterface.cc.

Here is the call graph for this function:

◆ get_metric_types()

std::vector< Plugin::Metric > SnapInterface::SnapStreamInterface::get_metric_types ( Plugin::Config cfg )

finaloverride

Returns all metrics that can be fetched by the plugin to Snap.

Parameters

cfg	incomming Snap configuration values

Returns: metrics that can be fetched

Definition at line 190 of file SnapStreamInterface.cc.

Here is the call graph for this function:

◆ get_metrics_in()

void SnapInterface::SnapStreamInterface::get_metrics_in ( std::vector< Plugin::Metric > & metsIn )

finaloverride

Gets the user's requested metrics from Snap.

Parameters

metsIn the user's requested metrics array

Definition at line 215 of file SnapStreamInterface.cc.

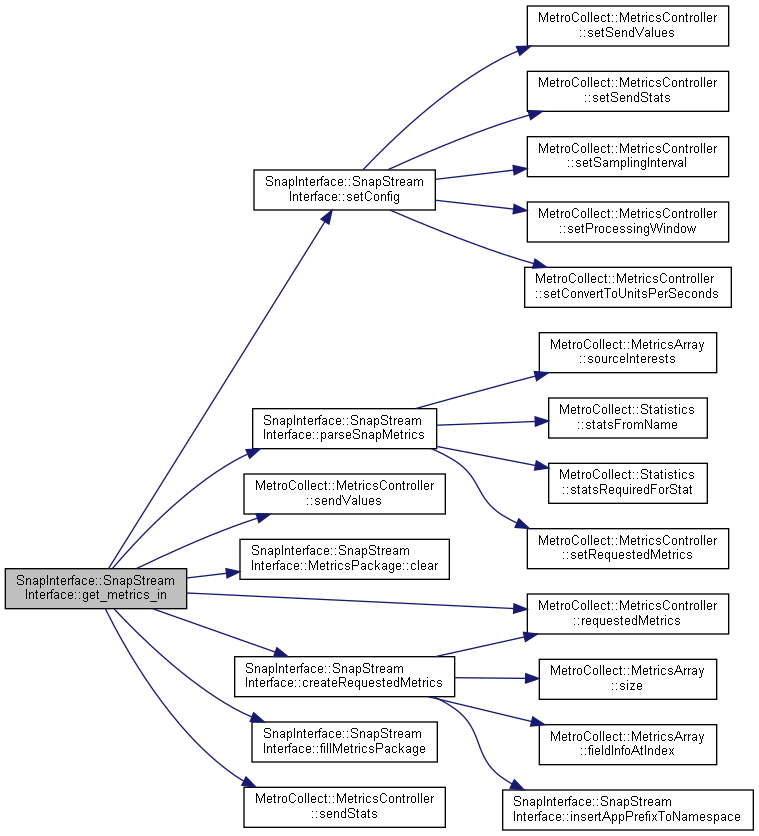

Here is the call graph for this function:

◆ insertAppPrefixToNamespace()

void SnapInterface::SnapStreamInterface::insertAppPrefixToNamespace ( std::vector< std::string > & ns )

protected

Inserts plugin name prefix into Snap namespace.

Parameters

ns	Snap namespace to modify

Definition at line 91 of file SnapStreamInterface.cc.

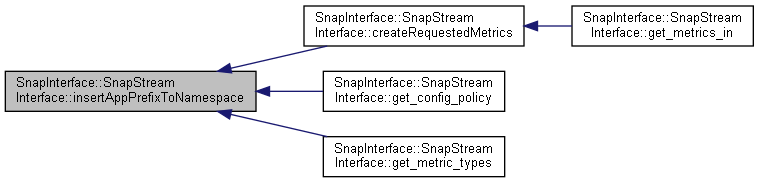

Here is the caller graph for this function:

◆ metricsContollerCollectedMetricsStats()

void SnapInterface::SnapStreamInterface::metricsContollerCollectedMetricsStats	(	const MetroCollect::MetricsController &	metricsController,
		const MetroCollect::MetricsController::MetricsStats &	metricsStats
	)

finaloverridevirtual

Function called every time the MetricsController has computed statistics.

Parameters

metricsController	the calling MetricsController
metricsStats	computed statistics

Implements MetroCollect::MetricsControllerDelegate.

Definition at line 256 of file SnapStreamInterface.cc.

Here is the call graph for this function:

◆ metricsContollerCollectedMetricsValues()

void SnapInterface::SnapStreamInterface::metricsContollerCollectedMetricsValues	(	const MetroCollect::MetricsController &	metricsController,
		const MetroCollect::MetricsDiffArray &	metricsDiff,
		const MetroCollect::MetricsDataArray &	previousMetrics,
		const MetroCollect::MetricsDataArray &	currentMetrics
	)

finaloverridevirtual

Function called every time the MetricsController has collected new values.

Parameters

metricsController	the calling MetricsController
metricsDiff	computed metrics differences
previousMetrics	earlier collected metrics
currentMetrics	latest collected metrics

Implements MetroCollect::MetricsControllerDelegate.

Definition at line 245 of file SnapStreamInterface.cc.

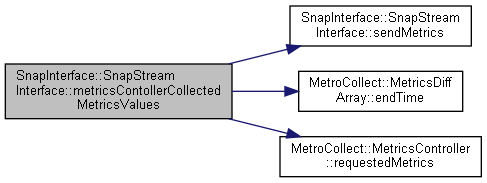

Here is the call graph for this function:

◆ metricsContollerShouldStopCollectingMetrics()

bool SnapInterface::SnapStreamInterface::metricsContollerShouldStopCollectingMetrics ( const MetroCollect::MetricsController & metricsController )

finaloverridevirtual

Function called after each iteration to ask the delegate whether the controller should stop collecting metrics.

Parameters

metricsController the calling MetricsController

Returns: true if the controller should stop; false otherwise

Implements MetroCollect::MetricsControllerDelegate.

Definition at line 269 of file SnapStreamInterface.cc.

◆ parseSnapMetrics()

void SnapInterface::SnapStreamInterface::parseSnapMetrics ( const std::vector< Plugin::Metric > & metrics )

protected

Generate requestedMetrics array from list of Snap metrics.

Parameters

metrics Snap metrics requested by the user

Definition at line 69 of file SnapStreamInterface.cc.

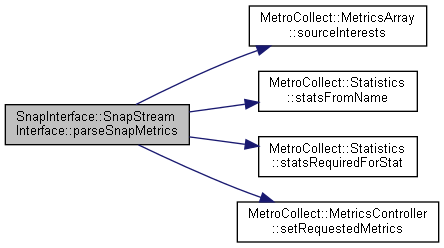

Here is the call graph for this function:

Here is the caller graph for this function:

◆ sendMetrics()

void SnapInterface::SnapStreamInterface::sendMetrics	(	MetricsPackage &	package,
		std::function< void(MetricsPackage::TimedMetrics &)>	copyMetrics
	)

protected

Filters and sends metrics form a package to Snap.

Parameters

package	metrics to send
copyMetrics	function used to copy new metrics into the package

Definition at line 127 of file SnapStreamInterface.cc.

Here is the caller graph for this function:

◆ setConfig()

void SnapInterface::SnapStreamInterface::setConfig ( const Plugin::Config & cfg )

protected

Configures the plugin and the controller accordingly, unspecified values are reset to default.

Parameters

cfg	configuration options to use

Definition at line 34 of file SnapStreamInterface.cc.

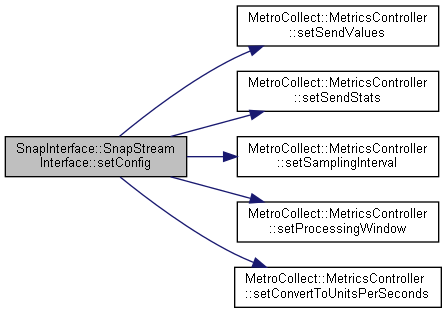

Here is the call graph for this function:

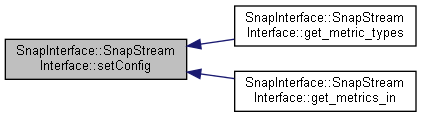

Here is the caller graph for this function:

◆ stream_metrics()

void SnapInterface::SnapStreamInterface::stream_metrics ( )

finaloverride

Stream metrics to Snap.

Definition at line 208 of file SnapStreamInterface.cc.

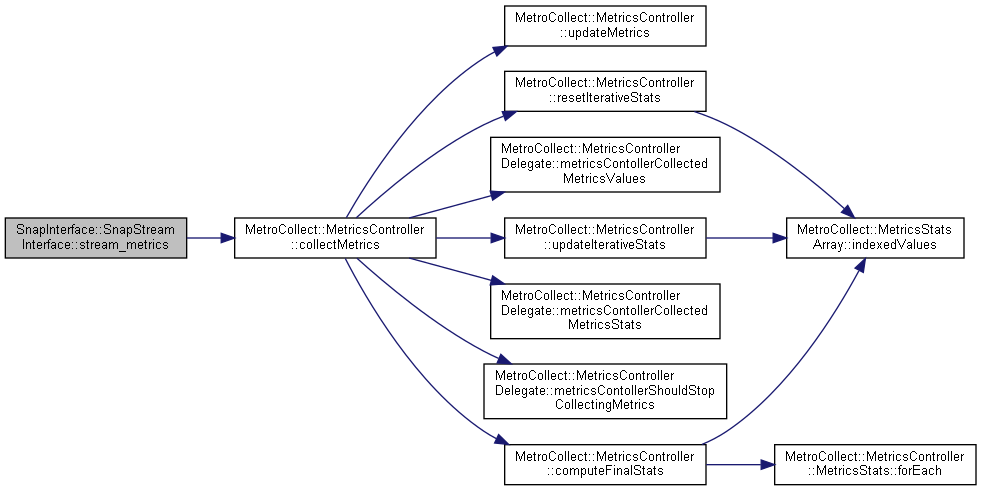

Here is the call graph for this function:

Member Data Documentation

◆ appName

constexpr std::string_view SnapInterface::SnapStreamInterface::appName = "metrocollect"sv

static

Snap plugin name.

Definition at line 44 of file SnapStreamInterface.h.

◆ appPrefix

constexpr std::array SnapInterface::SnapStreamInterface::appPrefix = {"cfm"sv}

staticprotected

Snap metric name prefix.

Definition at line 84 of file SnapStreamInterface.h.

◆ appVersion

constexpr int SnapInterface::SnapStreamInterface::appVersion = 2

static

Snap plugin version.

Definition at line 43 of file SnapStreamInterface.h.

◆ configKeyConvertToUnitsPerSecond

constexpr std::string_view SnapInterface::SnapStreamInterface::configKeyConvertToUnitsPerSecond = "ConvertToUnitsPerSecond"sv

staticprotected

Snap plugin configuration key.

Definition at line 90 of file SnapStreamInterface.h.

◆ configKeyMaxCollectDuration

constexpr std::string_view SnapInterface::SnapStreamInterface::configKeyMaxCollectDuration = "MaxCollectDuration"sv

staticprotected

Snap plugin configuration key.

Definition at line 92 of file SnapStreamInterface.h.

◆ configKeyMaxMetricsBuffer

constexpr std::string_view SnapInterface::SnapStreamInterface::configKeyMaxMetricsBuffer = "MaxMetricsBuffer"sv

staticprotected

Snap plugin configuration key.

Definition at line 93 of file SnapStreamInterface.h.

◆ configKeyProcessingWindowLength

constexpr std::string_view SnapInterface::SnapStreamInterface::configKeyProcessingWindowLength = "ProcessingWindowLength"sv

staticprotected

Snap plugin configuration key.

Definition at line 88 of file SnapStreamInterface.h.

◆ configKeyProcessingWindowOverlap

constexpr std::string_view SnapInterface::SnapStreamInterface::configKeyProcessingWindowOverlap = "ProcessingWindowOverlap"sv

staticprotected

Snap plugin configuration key.

Definition at line 89 of file SnapStreamInterface.h.

◆ configKeySamplingInterval

constexpr std::string_view SnapInterface::SnapStreamInterface::configKeySamplingInterval = "SamplingInterval"sv

staticprotected

Snap plugin configuration key.

Definition at line 87 of file SnapStreamInterface.h.

◆ configKeysBool

constexpr std::array SnapInterface::SnapStreamInterface::configKeysBool = {configKeySendValues, configKeySendStats, configKeyConvertToUnitsPerSecond}

staticprotected

Array of boolean-valued configuration keys.

Definition at line 95 of file SnapStreamInterface.h.

◆ configKeySendStats

constexpr std::string_view SnapInterface::SnapStreamInterface::configKeySendStats = "SendStats"sv

staticprotected

Snap plugin configuration key.

Definition at line 86 of file SnapStreamInterface.h.

◆ configKeySendValues

constexpr std::string_view SnapInterface::SnapStreamInterface::configKeySendValues = "SendValues"sv

staticprotected

Snap plugin configuration key.

Definition at line 85 of file SnapStreamInterface.h.

◆ configKeysInt

constexpr std::array SnapInterface::SnapStreamInterface::configKeysInt = {configKeySamplingInterval, configKeyProcessingWindowLength, configKeyProcessingWindowOverlap, configKeyUnchangedMetricTimeout, configKeyMaxCollectDuration, configKeyMaxMetricsBuffer}

staticprotected

Array of integer-valued configuration keys.

Definition at line 94 of file SnapStreamInterface.h.

◆ configKeyUnchangedMetricTimeout

constexpr std::string_view SnapInterface::SnapStreamInterface::configKeyUnchangedMetricTimeout = "UnchangedMetricTimeout"sv

staticprotected

Snap plugin configuration key.

Definition at line 91 of file SnapStreamInterface.h.

◆ configValuesBool

constexpr std::array<bool, configKeysBool.size()> SnapInterface::SnapStreamInterface::configValuesBool = {defaultSendValues, defaultSendStats, MetroCollect::MetricsController::defaultConvertToUnitsPerSecond}

staticprotected

Array of boolean-valued configuration default values.

Definition at line 102 of file SnapStreamInterface.h.

◆ configValuesInt

constexpr std::array<int, configKeysInt.size()> SnapInterface::SnapStreamInterface::configValuesInt = {MetroCollect::MetricsController::defaultSamplingInterval.count(), MetroCollect::MetricsController::defaultProcessingWindowLength, MetroCollect::MetricsController::defaultProcessingWindowOverlap, SnapStreamInterface::defaultUnchangedMetricTimeout, SnapStreamInterface::defaultMaxCollectDuration.count(), SnapStreamInterface::defaultMaxMetricsBuffer}

staticprotected

Array of integer-valued configuration default values.

Definition at line 101 of file SnapStreamInterface.h.

◆ defaultMaxCollectDuration

constexpr std::chrono::seconds SnapInterface::SnapStreamInterface::defaultMaxCollectDuration = 0s

staticprotected

Snap plugin configuration default value.

Definition at line 99 of file SnapStreamInterface.h.

◆ defaultMaxMetricsBuffer

constexpr size_t SnapInterface::SnapStreamInterface::defaultMaxMetricsBuffer = 0

staticprotected

Snap plugin configuration default value.

Definition at line 100 of file SnapStreamInterface.h.

◆ defaultSendStats

constexpr bool SnapInterface::SnapStreamInterface::defaultSendStats = true

staticprotected

Snap plugin configuration default value.

Definition at line 97 of file SnapStreamInterface.h.

◆ defaultSendValues

constexpr bool SnapInterface::SnapStreamInterface::defaultSendValues = false

staticprotected

Snap plugin configuration default value.

Definition at line 96 of file SnapStreamInterface.h.

◆ defaultUnchangedMetricTimeout

constexpr size_t SnapInterface::SnapStreamInterface::defaultUnchangedMetricTimeout = 300

staticprotected

Snap plugin configuration default value.

Definition at line 98 of file SnapStreamInterface.h.

◆ metricsController_

MetroCollect::MetricsController SnapInterface::SnapStreamInterface::metricsController_

protected

MetricsController used to collect statistics.

Definition at line 106 of file SnapStreamInterface.h.

◆ requestedMetrics_

MetroCollect::MetricsArray<MetroCollect::Statistics::Stats> SnapInterface::SnapStreamInterface::requestedMetrics_

protected

Array of requested metrics.

Definition at line 108 of file SnapStreamInterface.h.

◆ statNamespaceDescription

constexpr std::string_view SnapInterface::SnapStreamInterface::statNamespaceDescription = "statistic"sv

staticprotected

Snap metric name description.

Definition at line 104 of file SnapStreamInterface.h.

◆ statNamespaceLastComponent

constexpr std::string_view SnapInterface::SnapStreamInterface::statNamespaceLastComponent = "value"sv

staticprotected

Snap metric name category.

Definition at line 103 of file SnapStreamInterface.h.

◆ statsPackage_

MetricsPackage SnapInterface::SnapStreamInterface::statsPackage_

protected

MetricsPackage for metrics from computed statistics.

Definition at line 112 of file SnapStreamInterface.h.

◆ unchangedMetricsTimeout_

size_t SnapInterface::SnapStreamInterface::unchangedMetricsTimeout_

protected

Sub-sampling period for constant metrics.

Definition at line 109 of file SnapStreamInterface.h.

◆ valuesPackage_

MetricsPackage SnapInterface::SnapStreamInterface::valuesPackage_

protected

MetricsPackage for metrics from raw counters variations.

Definition at line 111 of file SnapStreamInterface.h.

The documentation for this class was generated from the following files:

MetroCollectSnap/SnapStreamInterface.h
MetroCollectSnap/SnapStreamInterface.cc

Classes

Public Member Functions

Static Public Attributes

Protected Member Functions

Protected Attributes

Static Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ SnapStreamInterface()

Member Function Documentation

◆ createRequestedMetrics()

◆ fillMetricsPackage()

◆ get_config_policy()

◆ get_metric_types()

◆ get_metrics_in()

◆ insertAppPrefixToNamespace()

◆ metricsContollerCollectedMetricsStats()

◆ metricsContollerCollectedMetricsValues()

◆ metricsContollerShouldStopCollectingMetrics()

◆ parseSnapMetrics()

◆ sendMetrics()

◆ setConfig()

◆ stream_metrics()

Member Data Documentation

◆ appName

◆ appPrefix

◆ appVersion

◆ configKeyConvertToUnitsPerSecond

◆ configKeyMaxCollectDuration

◆ configKeyMaxMetricsBuffer

◆ configKeyProcessingWindowLength

◆ configKeyProcessingWindowOverlap

◆ configKeySamplingInterval

◆ configKeysBool

◆ configKeySendStats

◆ configKeySendValues

◆ configKeysInt

◆ configKeyUnchangedMetricTimeout

◆ configValuesBool

◆ configValuesInt

◆ defaultMaxCollectDuration

◆ defaultMaxMetricsBuffer

◆ defaultSendStats

◆ defaultSendValues

◆ defaultUnchangedMetricTimeout

◆ metricsController_

◆ requestedMetrics_

◆ statNamespaceDescription

◆ statNamespaceLastComponent

◆ statsPackage_

◆ unchangedMetricsTimeout_

◆ valuesPackage_
